SISTEMA DE CONEXIÓN PILAR-FORJADO
PILLAR
PILLAR es el revolucionario sistema de conexión que te permite construir estructuras con sistema pilar-forjado imposibles hasta hoy con una distancia entre las columnas de hasta 3,5 x 7,0 metros.
Permite transferir más de 5000 kN de fuerza vertical entre pilar y pilar.
Video
PILLAR, EL SISTEMA DE CONEXIÓN QUE TE PERMITE CONSTRUIR LO IMPOSIBLE

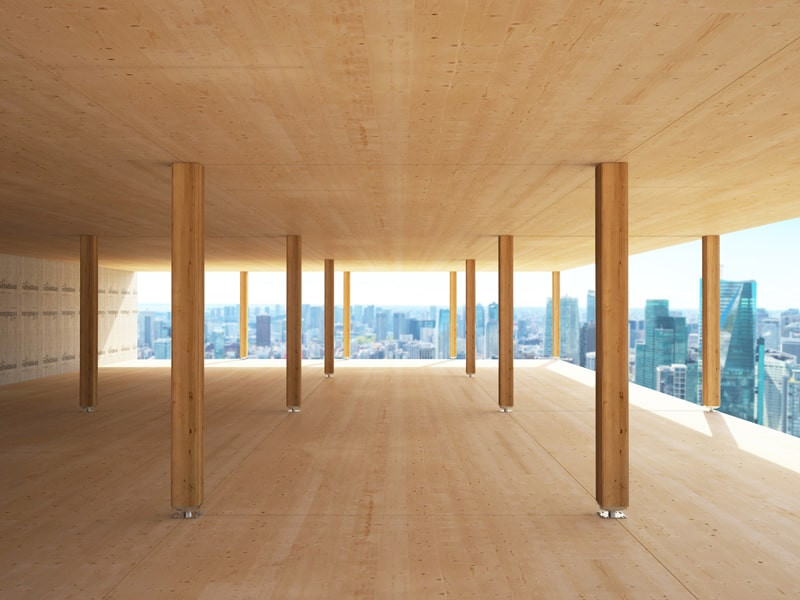

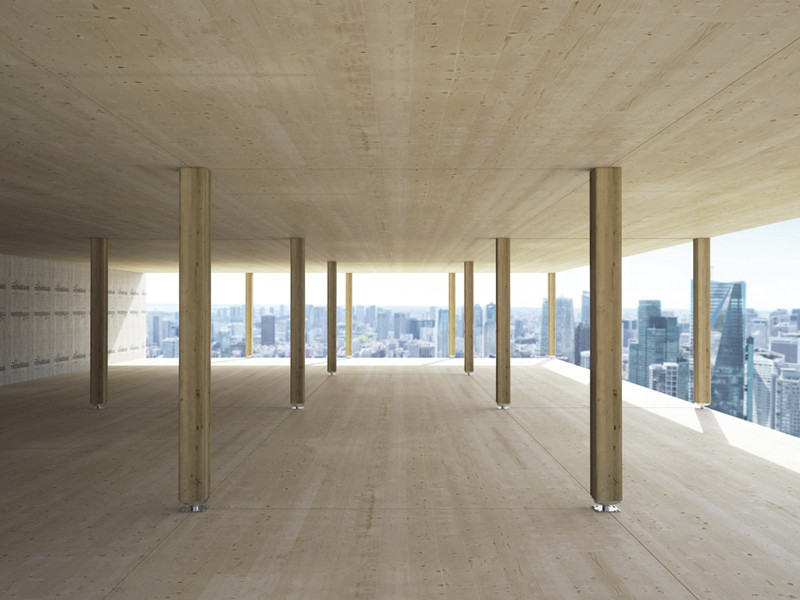

El conector PILLAR se ha diseñado para construir forjados planos de CLT apoyados puntualmente sobre pilares, sin utilizar vigas rebajadas. Ideal para edificios multipisos sobre pilares, resiste a la compresión hasta más de 500 toneladas gracias a su núcleo central que evita el aplastamiento de los paneles.

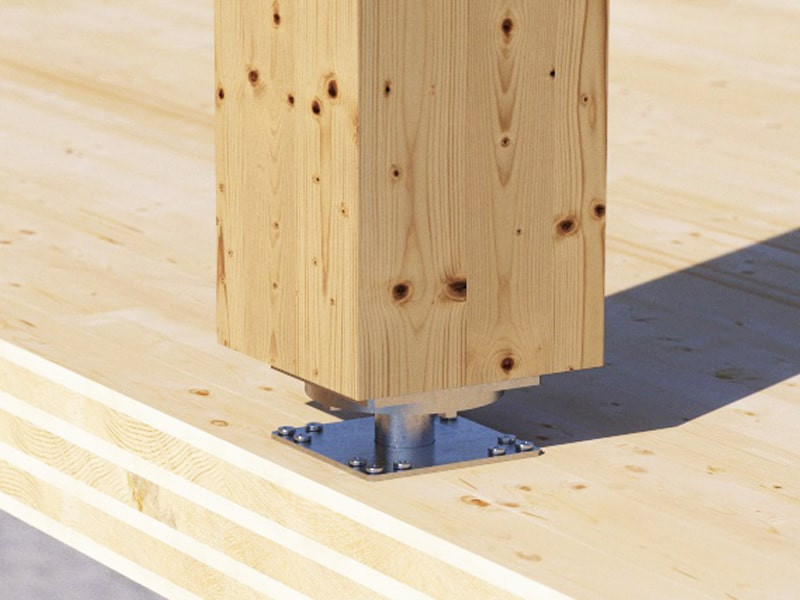

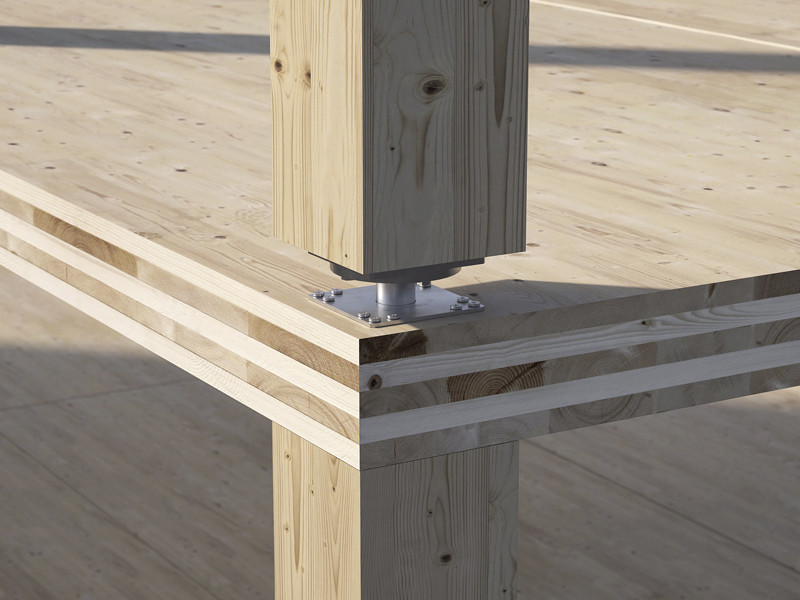

Oculto dentro de la cavidad de los pilares, permite obtener acabados de los forjados de espesores reducidos. Utilizado en combinación con el sistema SPIDER, es ideal para las columnas en las esquinas o en el perímetro de la retícula estructural.

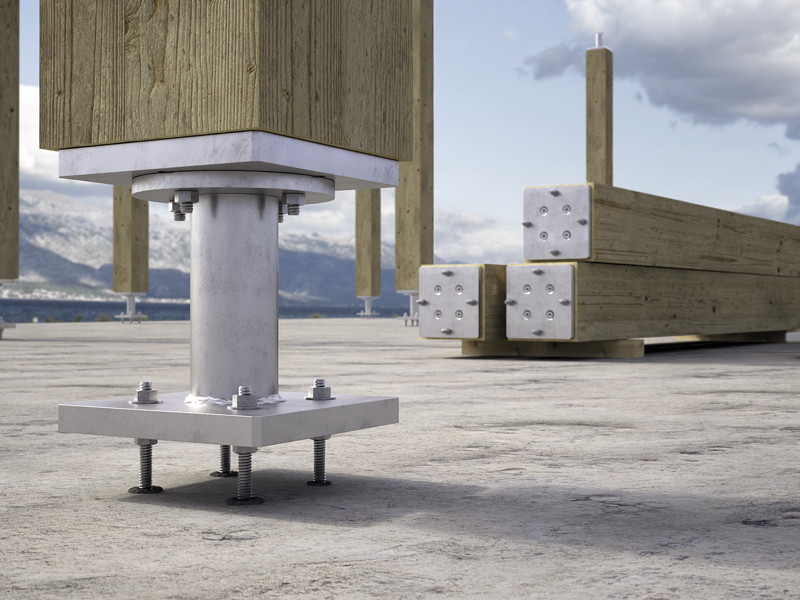

PILLAR es un conector versátil, calculado y certificado también para uniones entre paneles de CLT y pilares de hormigón o acero. De acero S355-S690 con zincado galvanizado, se ha diseñado para utilizarse con pilares de madera maciza, madera laminada, LVL, acero y hormigón armado.
Documentación
Ficha técnica
|
|
|---|---|
Certification ETA
|
|
CAD Files
|
|
BIM.ifc File
|
|
BIM.rfa File
|

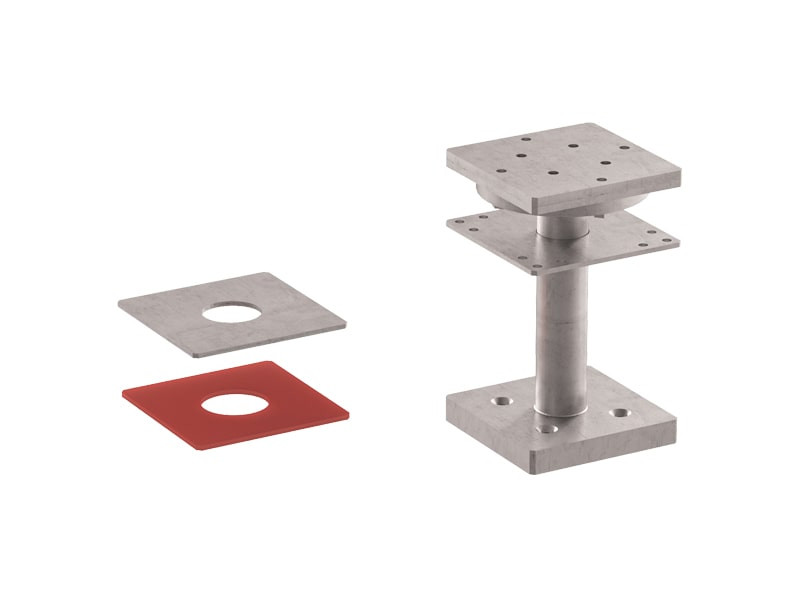

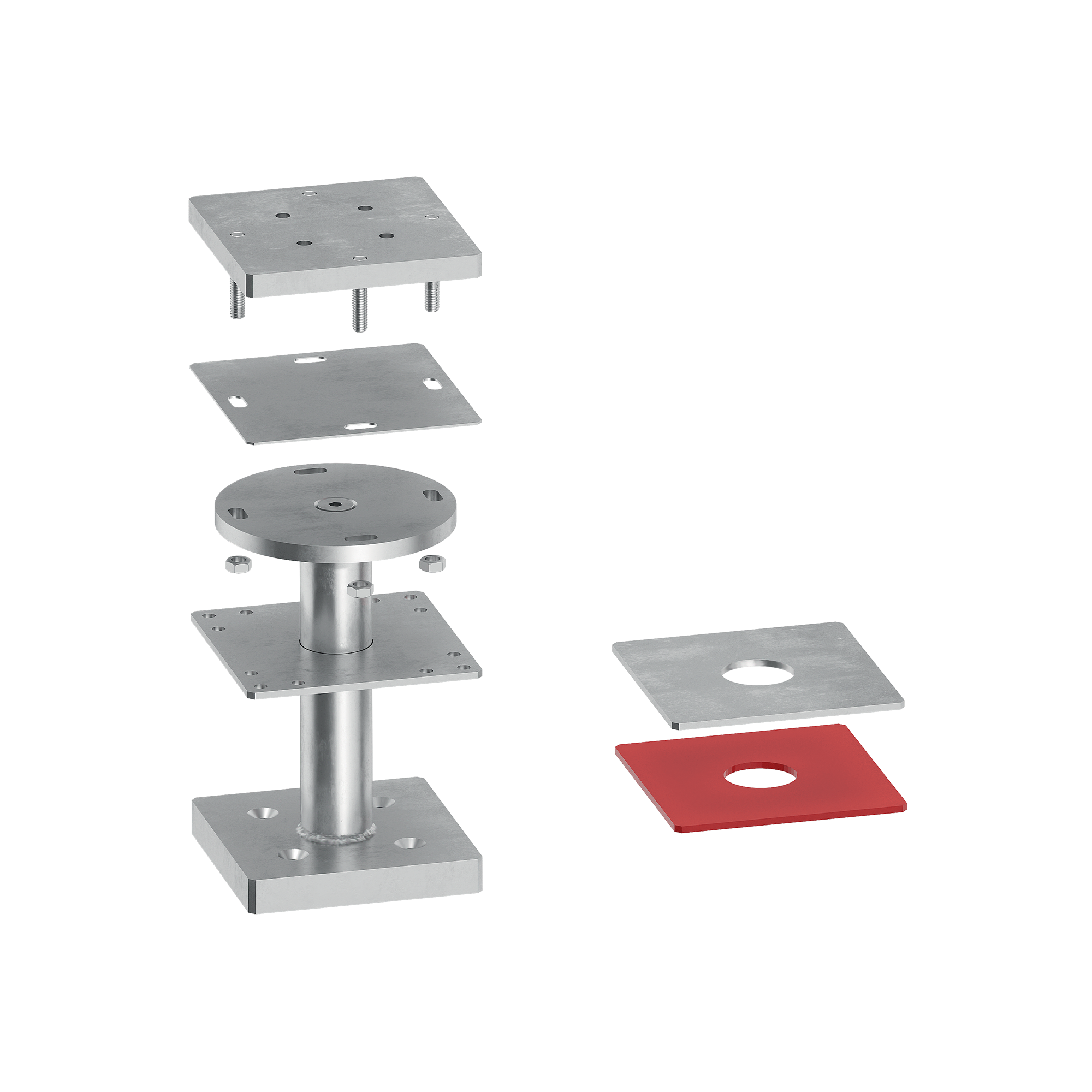

PILLAR
| CÓDIGO | Ø
[mm]
|
H
[mm]
|
medidas
[mm]
|
unid. |
|---|---|---|---|---|
| PIL60S160 | 60 | 160 | A=200 B=200 | 1 |
| PIL60S180 | 60 | 180 | A=200 B=200 | 1 |
| PIL60S200 | 60 | 200 | A=200 B=200 | 1 |
| PIL60S220 | 60 | 220 | A=200 B=200 | 1 |
| PIL60S240 | 60 | 240 | A=200 B=200 | 1 |
| PIL60S280 | 60 | 280 | A=200 B=200 | 1 |
| PIL80S160 | 80 | 160 | A=200 B=240 | 1 |
| PIL80S180 | 80 | 180 | A=200 B=240 | 1 |
| PIL80S200 | 80 | 200 | A=200 B=240 | 1 |
| PIL80S220 | 80 | 220 | A=200 B=240 | 1 |
| PIL80S240 | 80 | 240 | A=200 B=240 | 1 |
| PIL80S280 | 80 | 280 | A=200 B=240 | 1 |
| PIL80M160 | 80 | 160 | A=240 B=280 | 1 |
| PIL80M180 | 80 | 180 | A=240 B=280 | 1 |
| PIL80M200 | 80 | 200 | A=240 B=280 | 1 |
| PIL80M220 | 80 | 220 | A=240 B=280 | 1 |
| PIL80M240 | 80 | 240 | A=240 B=280 | 1 |
| PIL80M280 | 80 | 280 | A=240 B=280 | 1 |
| PIL80L160 | 80 | 160 | A=280 B=280 | 1 |
| PIL80L180 | 80 | 180 | A=280 B=280 | 1 |
| PIL80L200 | 80 | 200 | A=280 B=280 | 1 |
| PIL80L220 | 80 | 220 | A=280 B=280 | 1 |
| PIL80L240 | 80 | 240 | A=280 B=280 | 1 |
| PIL80L280 | 80 | 280 | A=280 B=280 | 1 |
| PIL100S160 | 100 | 160 | A=240 B=240 | 1 |
| PIL100S180 | 100 | 180 | A=240 B=240 | 1 |
| PIL100S200 | 100 | 200 | A=240 B=240 | 1 |
| PIL100S220 | 100 | 220 | A=240 B=240 | 1 |
| PIL100S240 | 100 | 240 | A=240 B=240 | 1 |
| PIL100S280 | 100 | 280 | A=240 B=240 | 1 |
| PIL100M160 | 100 | 160 | A=280 B=280 | 1 |
| PIL100M180 | 100 | 180 | A=280 B=280 | 1 |
| PIL100M200 | 100 | 200 | A=280 B=280 | 1 |
| PIL100M220 | 100 | 220 | A=280 B=280 | 1 |
| PIL100M240 | 100 | 240 | A=280 B=280 | 1 |
| PIL100M280 | 100 | 280 | A=280 B=280 | 1 |
| PIL120S160 | 120 | 160 | A=280 B=280 | 1 |
| PIL120S180 | 120 | 180 | A=280 B=280 | 1 |
| PIL120S200 | 120 | 200 | A=280 B=280 | 1 |
| PIL120S220 | 120 | 220 | A=280 B=280 | 1 |
| PIL120S240 | 120 | 240 | A=280 B=280 | 1 |
| PIL120S280 | 120 | 280 | A=280 B=280 | 1 |
| PIL120M160 | 120 | 160 | A=280 B=280 | 1 |
| PIL120M180 | 120 | 180 | A=280 B=280 | 1 |
| PIL120M200 | 120 | 200 | A=280 B=280 | 1 |
| PIL120M220 | 120 | 220 | A=280 B=280 | 1 |
| PIL120M240 | 120 | 240 | A=280 B=280 | 1 |
| PIL120M280 | 120 | 280 | A=280 B=280 | 1 |
XYLOFON WASHER
| CÓDIGO | descripción | unid. |
|---|---|---|
| XYLW3560200 | XYLOFON WASHER for PIL60S | 1 |
| XYLW3580240 | for PIL80S | 1 |
| XYLW3580280 | for PIL80M-PIL80L | 1 |
| XYLW35100240 | for PIL100S | 1 |
| XYLW35100280 | for PIL100M-PIL100L | 1 |
| XYLW35120280 | for PIL120S-PIL120M-PIL120L | 1 |
| XYLW5060200 | for PIL60S | 1 |
| XYLW5080240 | for PIL80S | 1 |
| XYLW5080280 | for PIL80M-PIL80L | 1 |
| XYLW50100240 | for PIL100S | 1 |
| XYLW50100280 | for PIL100M-PIL100L | 1 |
| XYLW50120280 | for PIL120S-PIL120M-PIL120L | 1 |
| XYLW7060200 | for PIL60S | 1 |
| XYLW7080240 | for PIL80S | 1 |
| XYLW7080280 | for PIL80M-PIL80L | 1 |
| XYLW70100240 | for PIL100S | 1 |
| XYLW70100280 | for PIL100M-PIL100L | 1 |
| XYLW70120280 | for PIL120S-PIL120M-PIL120L | 1 |
| XYLW8060200 | for PIL60S | 1 |
| XYLW8080240 | for PIL80S | 1 |
| XYLW8080280 | for PIL80M-PIL80L | 1 |
| XYLW80100240 | for PIL100S | 1 |
| XYLW80100280 | for PIL100M-PIL100L | 1 |
| XYLW80120280 | for PIL120S-PIL120M-PIL120L | 1 |
| XYLW9060200 | for PIL60S | 1 |
| XYLW9080240 | for PIL80S | 1 |
| XYLW9080280 | for PIL80M-PIL80L | 1 |
| XYLW90100240 | for PIL100S | 1 |
| XYLW90100280 | for PIL100M-PIL100L | 1 |
| XYLW90120280 | for PIL120S-PIL120M-PIL120L | 1 |
DISTRIBUTION PLATE
| CÓDIGO | descripción | unid. |
|---|---|---|
| SP60200 | for PIL60S | 1 |
| SP80240 | for PIL80S | 1 |
| SP80280 | for PIL80M-PIL80L | 1 |
| SP100240 | for PIL100S | 1 |
| SP100280 | for PIL100M-PIL100L | 1 |
| SP120280 | for PIL120S-PIL120M-PIL120L | 1 |
