TIRAFONDO DIN571
KOP

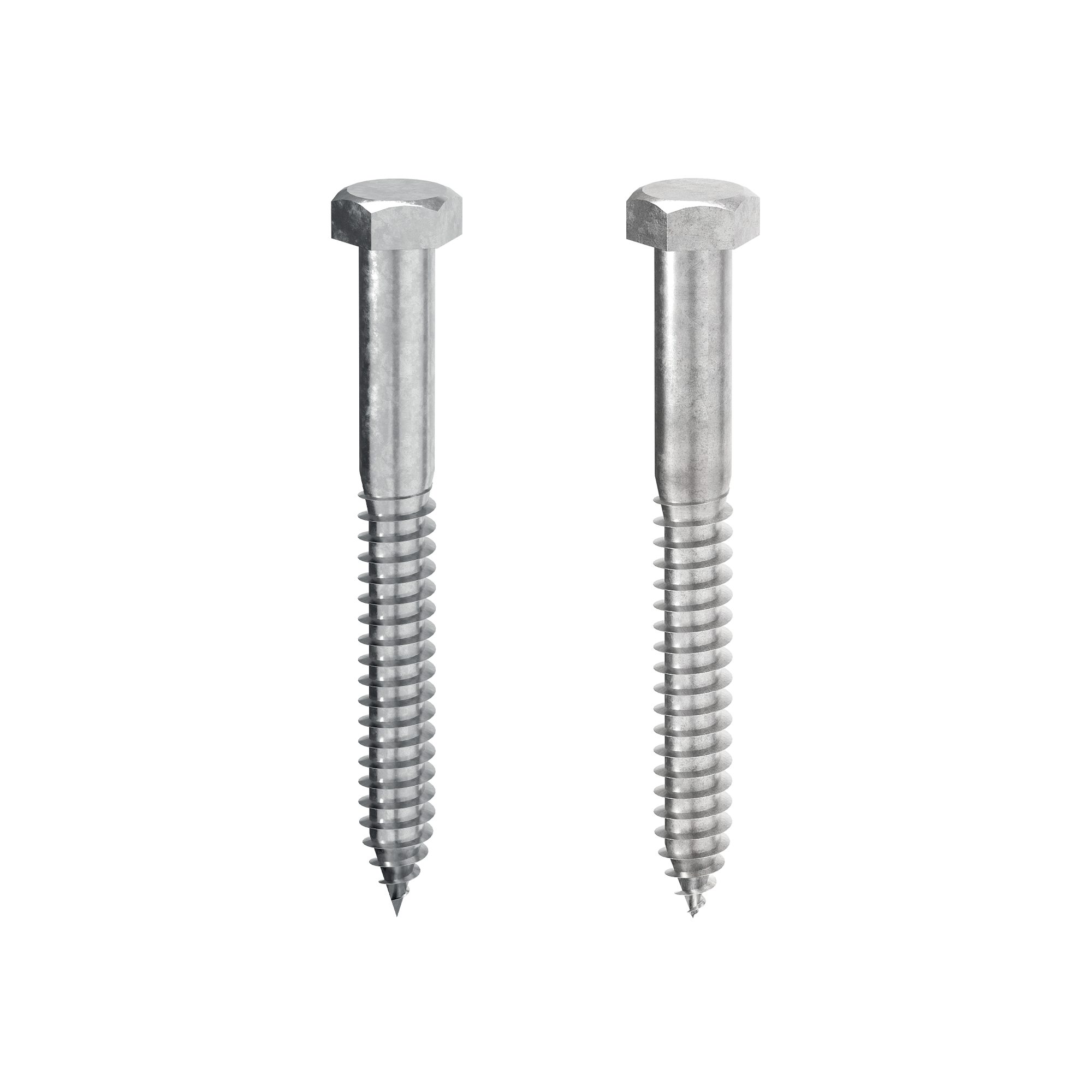

El tirafondo KOP es el tornillo histórico con su encanto que perdura en el tiempo. Marcado CE y de acuerdo con EN 14592.
Gracias a la cabeza hexagonal, su aplicación es aconsejada utilizando placas metálicas en uniones acero-madera.
Realizado en acero al carbono con zincado galvanizado blanco.

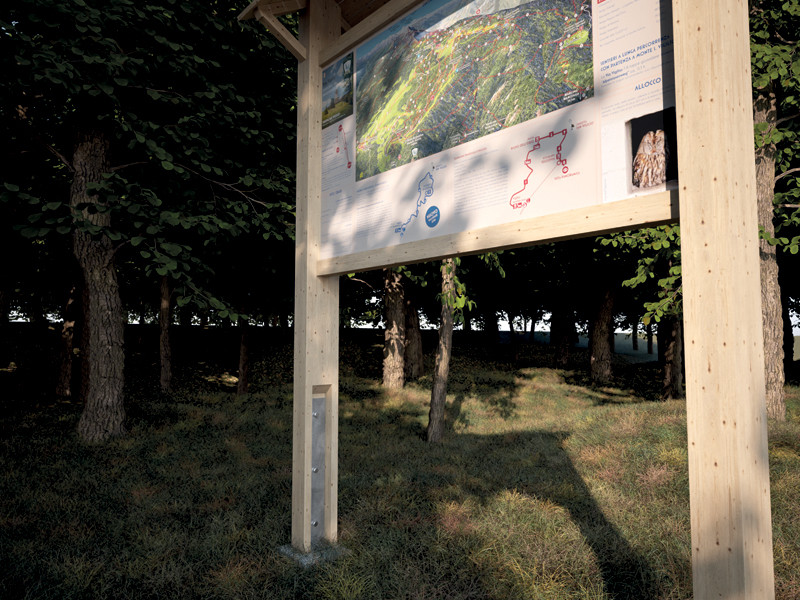

Es ideal para aplicaciones en paneles a base de madera,paneles laminados,madera laminada, X-Lam y LVL. Clases de servicio 1 y 2.
Disponible también en acero inoxidable A2 AISI304 pera aplicaciones al externo**, en clase de servicio 3.
Características
| PECULIARIDAD | tirafondo con marcado CE |
|---|---|
| CABEZA | hexagonal |
| DIÁMETRO | de 8,0 mm a 16,0 mm |
| LONGITUD | de 50 mm a 400 mm |
Documentación
Ficha técnica
|
|
|---|---|
Ficha técnica USA
|
|
| Declaración de prestaciones (DOP) | Descargar |
Especificaciones técnicas
|
|
CAD Files
|
KOP
| CÓDIGO | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
unid. |
|---|---|---|---|---|---|
| KOP850 | 8 | 50 | 0.32 | 1 15/16'' | 100 |
| KOP860 | 8 | 60 | 0.32 | 2 3/8'' | 100 |
| KOP870 | 8 | 70 | 0.32 | 2 3/4'' | 200 |
| KOP880 | 8 | 80 | 0.32 | 3 1/8'' | 100 |
| KOP8100 | 8 | 100 | 0.32 | 4'' | 50 |
| KOP8120 | 8 | 120 | 0.32 | 4 3/4'' | 50 |
| KOP8140 | 8 | 140 | 0.32 | 5 1/2'' | 50 |
| KOP8160 | 8 | 160 | 0.32 | 6 1/4'' | 50 |
| KOP8180 | 8 | 180 | 0.32 | 7 1/8'' | 50 |
| KOP8200 | 8 | 200 | 0.32 | 8'' | 50 |
| KOP1050 | 10 | 50 | 0.4 | 1 15/16'' | 50 |
| KOP1060 | 10 | 60 | 0.4 | 2 3/8'' | 50 |
| KOP1080 | 10 | 80 | 0.4 | 3 1/8'' | 50 |
| KOP10100 | 10 | 100 | 0.4 | 4'' | 50 |
| KOP10120 | 10 | 120 | 0.4 | 4 3/4'' | 50 |
| KOP10140 | 10 | 140 | 0.4 | 5 1/2'' | 50 |
| KOP10150 | 10 | 150 | 0.4 | 6'' | 50 |
| KOP10160 | 10 | 160 | 0.4 | 6 1/4'' | 50 |
| KOP10180 | 10 | 180 | 0.4 | 7 1/8'' | 50 |
| KOP10200 | 10 | 200 | 0.4 | 8'' | 50 |
| KOP10220 | 10 | 220 | 0.4 | 8 5/8'' | 50 |
| KOP10240 | 10 | 240 | 0.4 | 9 1/2'' | 50 |
| KOP10260 | 10 | 260 | 0.4 | 10 1/4'' | 50 |
| KOP10280 | 10 | 280 | 0.4 | 11'' | 50 |
| KOP10300 | 10 | 300 | 0.4 | 11 3/4'' | 50 |
| KOP1250 | 12 | 50 | 0.48 | 1 15/16'' | 50 |
| KOP1260 | 12 | 60 | 0.48 | 2 3/8'' | 50 |
| KOP1270 | 12 | 70 | 0.48 | 2 3/4'' | 50 |
| KOP1280 | 12 | 80 | 0.48 | 3 1/8'' | 50 |
| KOP1290 | 12 | 90 | 0.48 | 3 1/2'' | 50 |
| KOP12100 | 12 | 100 | 0.48 | 4'' | 25 |
| KOP12120 | 12 | 120 | 0.48 | 4 3/4'' | 25 |
| KOP12140 | 12 | 140 | 0.48 | 5 1/2'' | 25 |
| KOP12150 | 12 | 150 | 0.48 | 6'' | 25 |
| KOP12160 | 12 | 160 | 0.48 | 6 1/4'' | 25 |
| KOP12180 | 12 | 180 | 0.48 | 7 1/8'' | 25 |
| KOP12200 | 12 | 200 | 0.48 | 8'' | 25 |
| KOP12220 | 12 | 220 | 0.48 | 8 5/8'' | 25 |
| KOP12240 | 12 | 240 | 0.48 | 9 1/2'' | 25 |
| KOP12260 | 12 | 260 | 0.48 | 10 1/4'' | 25 |
| KOP12280 | 12 | 280 | 0.48 | 11'' | 25 |
| KOP12300 | 12 | 300 | 0.48 | 11 3/4'' | 25 |
| KOP12320 | 12 | 320 | 0.48 | 12 5/8'' | 25 |
| KOP12340 | 12 | 340 | 0.48 | 13 3/8'' | 25 |
| KOP12360 | 12 | 360 | 0.48 | 14 1/4'' | 25 |
| KOP12380 | 12 | 380 | 0.48 | 15'' | 25 |
| KOP12400 | 12 | 400 | 0.48 | 15 3/4'' | 25 |
| KOP1680 | 16 | 80 | 0.63 | 3 1/8'' | 25 |
| KOP16100 | 16 | 100 | 0.63 | 4'' | 25 |
| KOP16120 | 16 | 120 | 0.63 | 4 3/4'' | 25 |
| KOP16140 | 16 | 140 | 0.63 | 5 1/2'' | 25 |
| KOP16150 | 16 | 150 | 0.63 | 6'' | 25 |
| KOP16160 | 16 | 160 | 0.63 | 6 1/4'' | 25 |
| KOP16180 | 16 | 180 | 0.63 | 7 1/8'' | 25 |
| KOP16200 | 16 | 200 | 0.63 | 8'' | 25 |
| KOP16220 | 16 | 220 | 0.63 | 8 5/8'' | 25 |
| KOP16240 | 16 | 240 | 0.63 | 9 1/2'' | 25 |
| KOP16260 | 16 | 260 | 0.63 | 10 1/4'' | 25 |
| KOP16280 | 16 | 280 | 0.63 | 11'' | 25 |
| KOP16300 | 16 | 300 | 0.63 | 11 3/4'' | 25 |
| KOP16320 | 16 | 320 | 0.63 | 12 5/8'' | 25 |
| KOP16340 | 16 | 340 | 0.63 | 13 3/8'' | 25 |
| KOP16360 | 16 | 360 | 0.63 | 14 1/4'' | 25 |
| KOP16380 | 16 | 380 | 0.63 | 15'' | 25 |
| KOP16400 | 16 | 400 | 0.63 | 15 3/4'' | 25 |
KOP A2 | AISI304
| CÓDIGO | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
unid. |
|---|---|---|---|---|---|
| AI571850 | 8 | 50 | 0.32 | 1 15/16'' | 100 |
| AI571860 | 8 | 60 | 0.32 | 2 3/8'' | 100 |
| AI571880 | 8 | 80 | 0.32 | 3 1/8'' | 100 |
| AI5718100 | 8 | 100 | 0.32 | 4'' | 100 |
| AI5718120 | 8 | 120 | 0.32 | 4 3/4'' | 100 |
| AI5711050 | 10 | 50 | 0.4 | 1 15/16'' | 100 |
| AI5711060 | 10 | 60 | 0.4 | 2 3/8'' | 100 |
| AI5711080 | 10 | 80 | 0.4 | 3 1/8'' | 100 |
| AI57110100 | 10 | 100 | 0.4 | 4'' | 50 |
| AI57110120 | 10 | 120 | 0.4 | 4 3/4'' | 50 |
| AI57110140 | 10 | 140 | 0.4 | 5 1/2'' | 50 |
| AI57110160 | 10 | 160 | 0.4 | 6 1/4'' | 50 |
| AI57110180 | 10 | 180 | 0.4 | 7 1/8'' | 50 |
| AI57110200 | 10 | 200 | 0.4 | 8'' | 50 |
| AI57112100 | 12 | 100 | 0.48 | 4'' | 50 |
| AI57112120 | 12 | 120 | 0.48 | 4 3/4'' | 25 |
| AI57112140 | 12 | 140 | 0.48 | 5 1/2'' | 25 |
| AI57112160 | 12 | 160 | 0.48 | 6 1/4'' | 25 |
| AI57112180 | 12 | 180 | 0.48 | 7 1/8'' | 25 |
