BARANDA PARA FIJACIÓN A CHAPA TRAPEZOIDAL
GUARD M

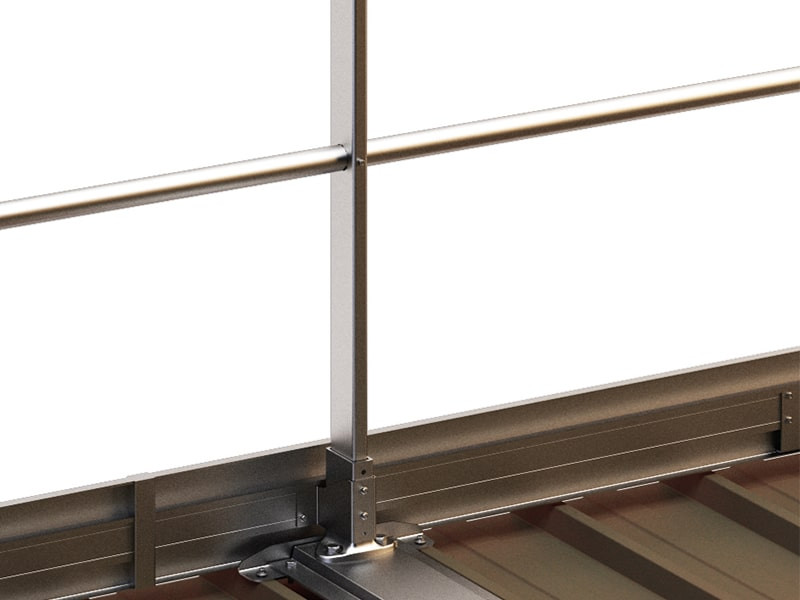

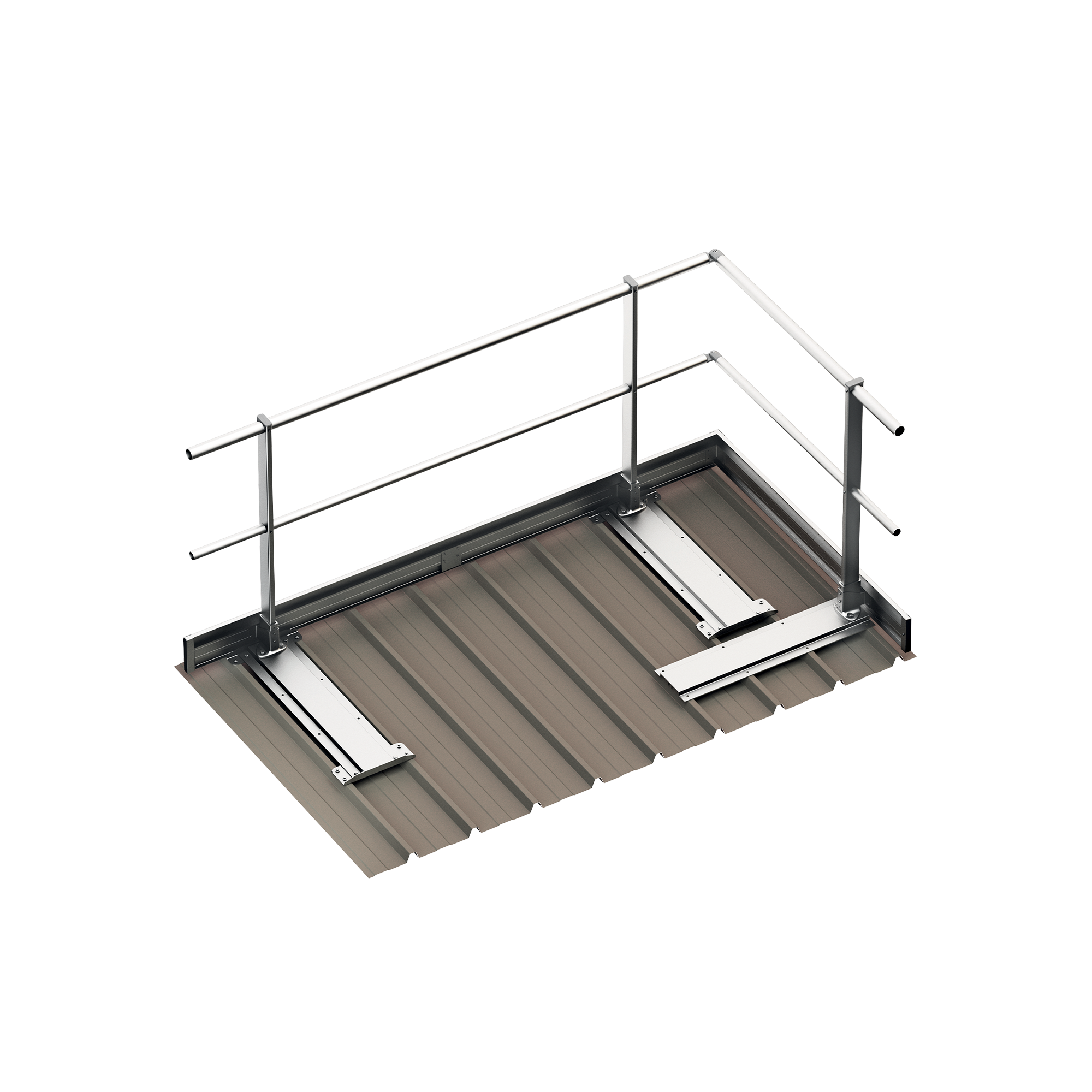

GUARD M es una baranda innovadora: gracias a las especiales placas de fijación para chapa trapezoidal, el sistema es ideal para cubiertas industriales.
Las placas de fijación están disponibles en las dos medidas más comunes de intereje entre grecas. Dos tipos de placas disponibles: longitudinales y transversales al eje de las grecas. El montaje es fácil y rápido: los componentes se fijan por encastre y con tornillos autoperforantes, incluidos en el suministro. De aleación de aluminio, la baranda es extraordinariamente ligera.
GUARD M, la baranda específica para ambientes industriales.
Documentación
Ficha técnica
|
|---|
Instrucciones de colocación
| Manual de instalación |
|---|
PASAMANOS Y BARRAS INTERMEDIAS
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
MONTANTES
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
| RBGSUP760WH | staight strut 760 mm high without intermediate rail | 1 |
RODAPIÉS Y ACCESORIOS
| CÓDIGO | descripción | unid. |
|---|---|---|

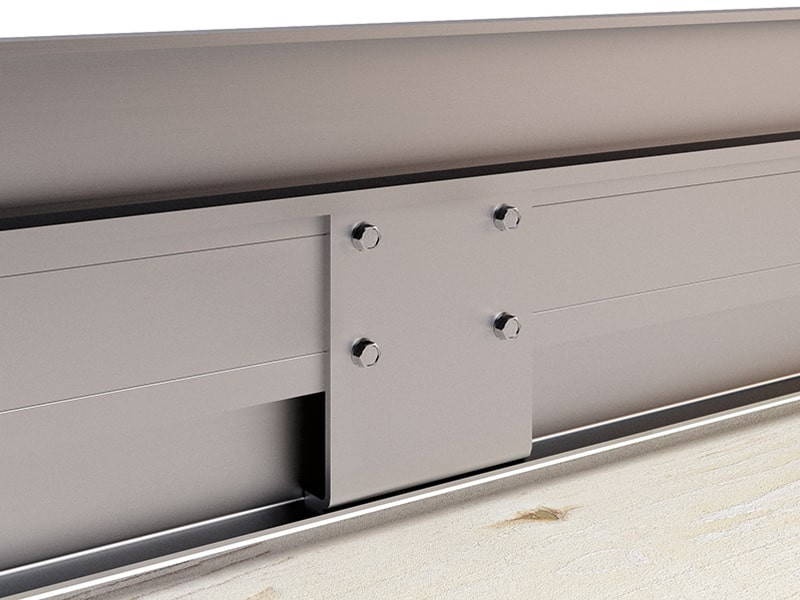

| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBH | support for toe board H = 150 mm | 1 |
BASI PER FISSAGGIO SU LAMIERA GRECATA
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGBASE250PA | plate for fastening to trapezoidal sheet metal, pitch 250 mm, parallel to trapezoidal sheet metal (excluding Screws) | 1 |
| RBGBASE333PA | plate for fastening to trapezoidal sheet metal, pitch 333 mm, parallel to trapezoidal sheet metal (excluding Screws) | 1 |
| RBGBASE250PE | plate for fastening to trapezoidal sheet metal, pitch 250 mm, perpendicular to the frets (excluding screws) | 1 |
| RBGBASE333PE | plate for fastening to trapezoidal sheet metal, pitch 333 mm, perpendicular to trapezoidal sheet metal (excluding screws) | 1 |
ACCESORIOS
| CÓDIGO | descripción | unid. |
|---|---|---|

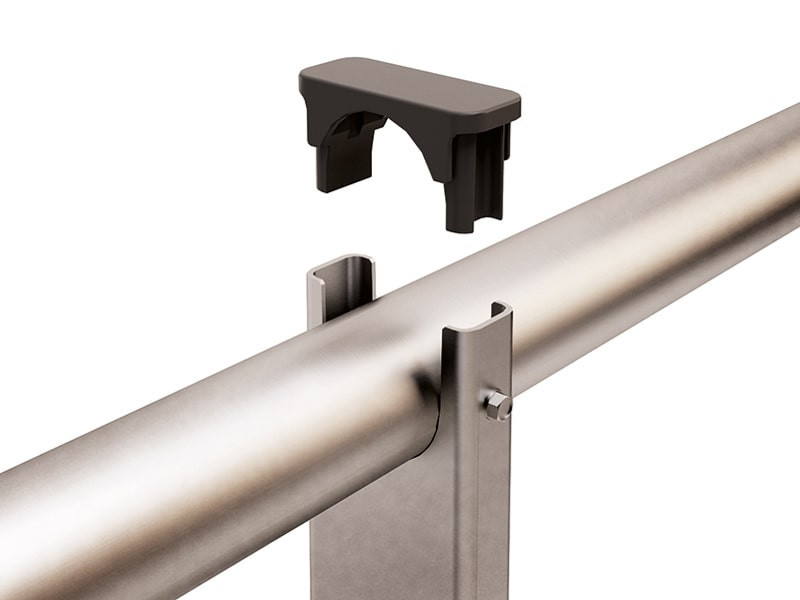

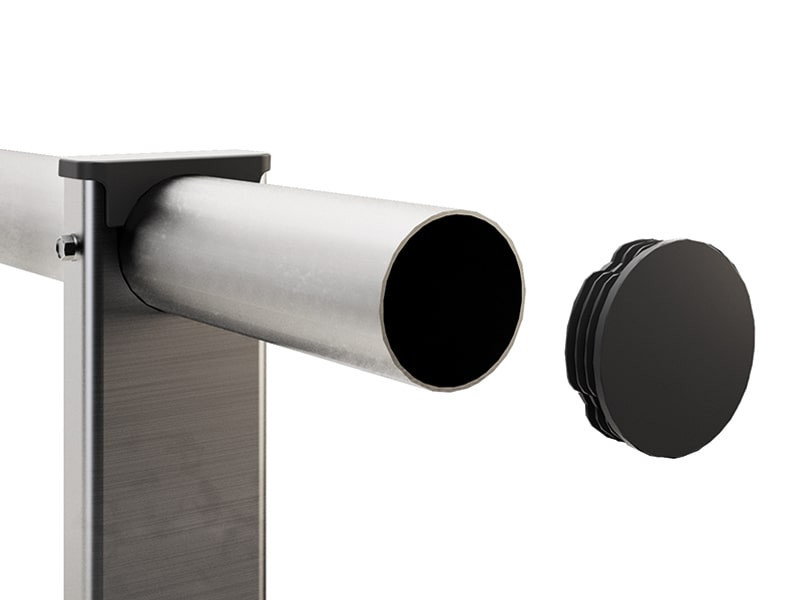

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |

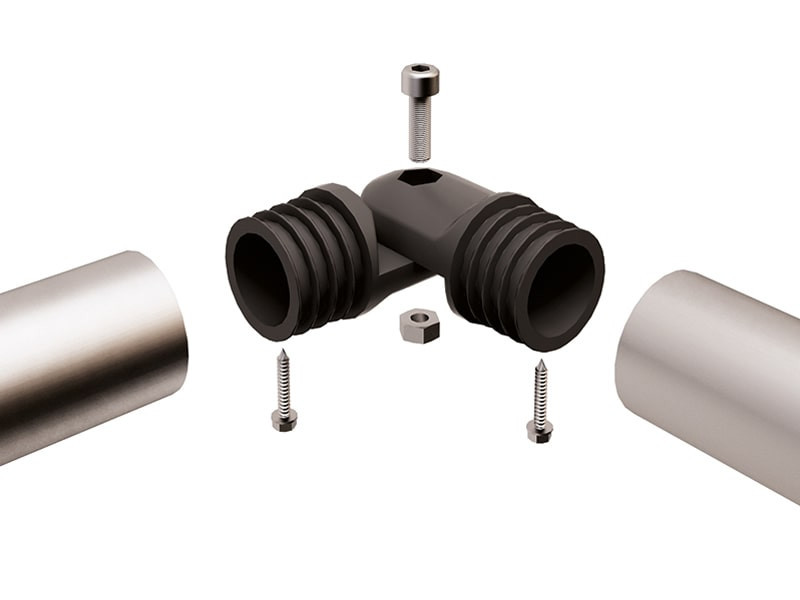

| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
TORNILLOS DE FIJACIÓN
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR810 | grub screw M8 x 10 (spare part) | 1 |
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
SISTEMA RECLINABILE
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
