BARANDA AUTOPORTANTE
GUARD W

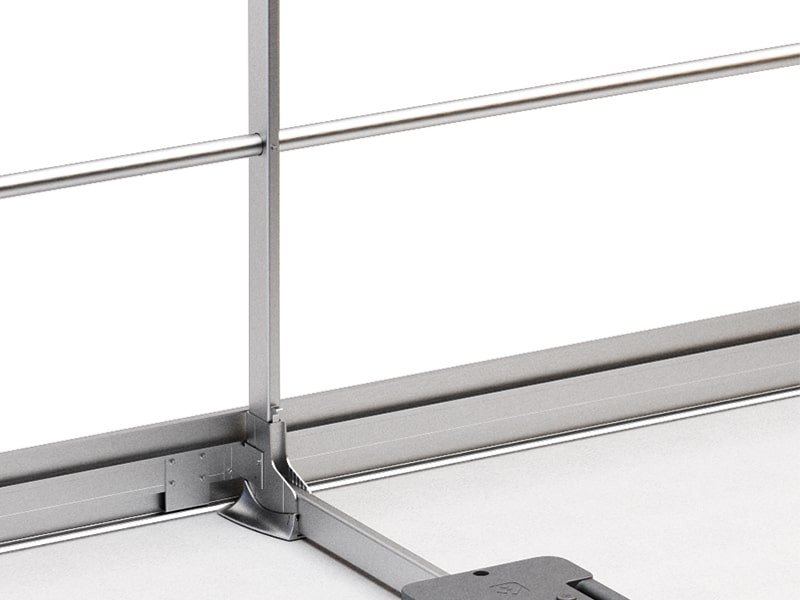

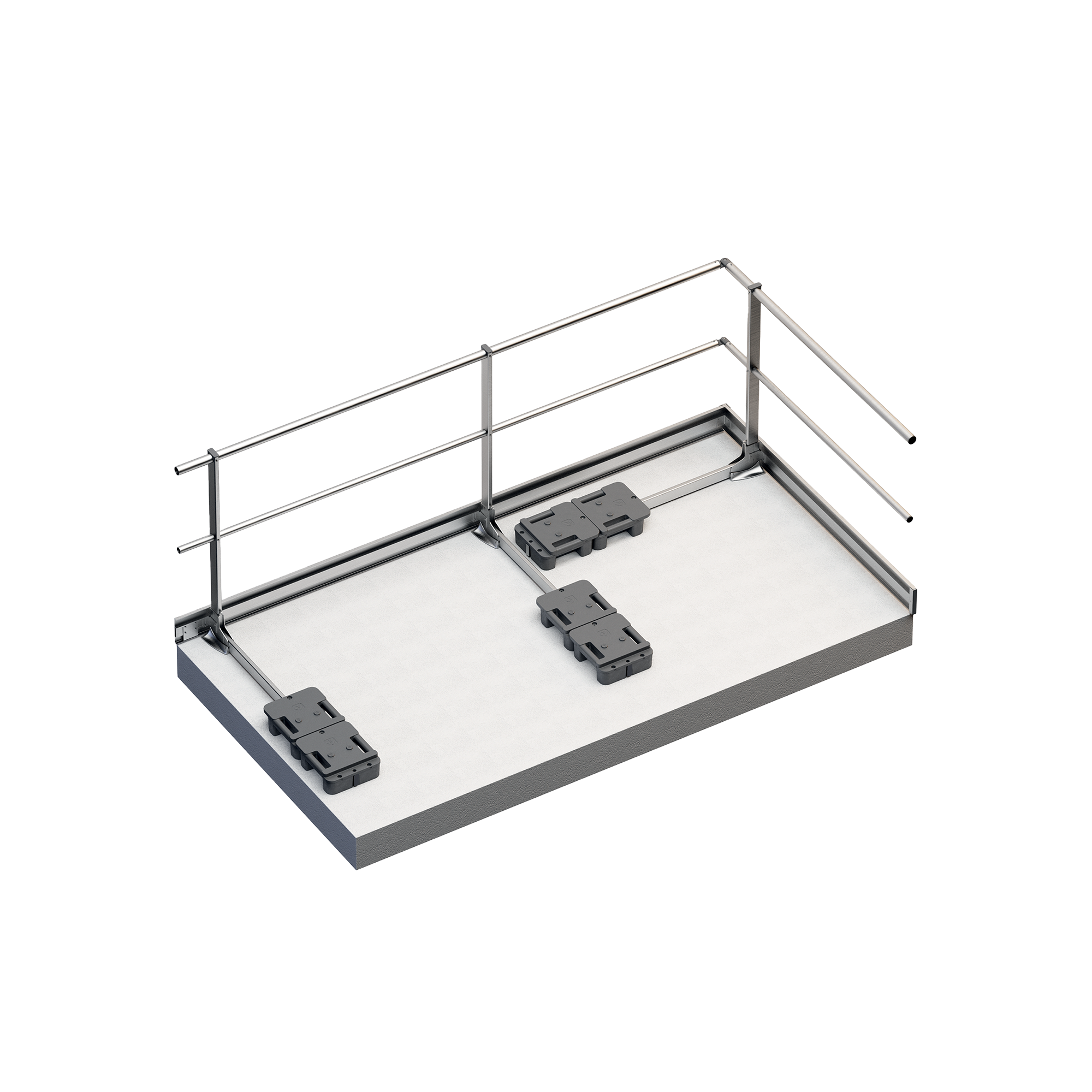

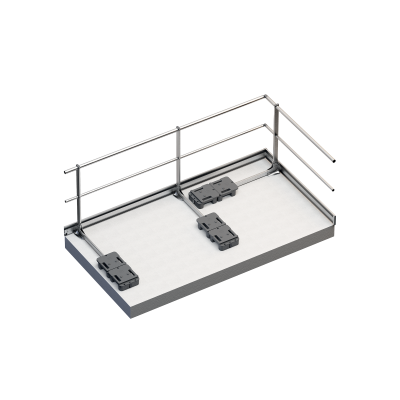

GUARD W es la baranda autoportante que, gracias a los lastres revestidos de plástico, incluidos en el suministro, no requiere la perforación de la estructura para instalarse, con lo cual se preserva la capa impermeabilizante.
Los lastres ergonómicos facilitan la instalación y el transporte, y el montaje es rápido y simple. Los componentes se fijan por encastre y con tornillos autoperforantes, incluidos en el suministro. De aleación de aluminio, la baranda es extraordinariamente ligera.
GUARD W, la baranda autoportante que preserva la capa impermeabilizante.
Documentación
Ficha técnica
|
|---|
Instrucciones de colocación
| Manual de instalación |
|---|
PASAMANOS Y BARRAS INTERMEDIAS - GUARD W
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
MONTANTES - GUARD W
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
RODAPIÉS Y ACCESORIOS - GUARD W
| CÓDIGO | descripción | unid. |
|---|---|---|

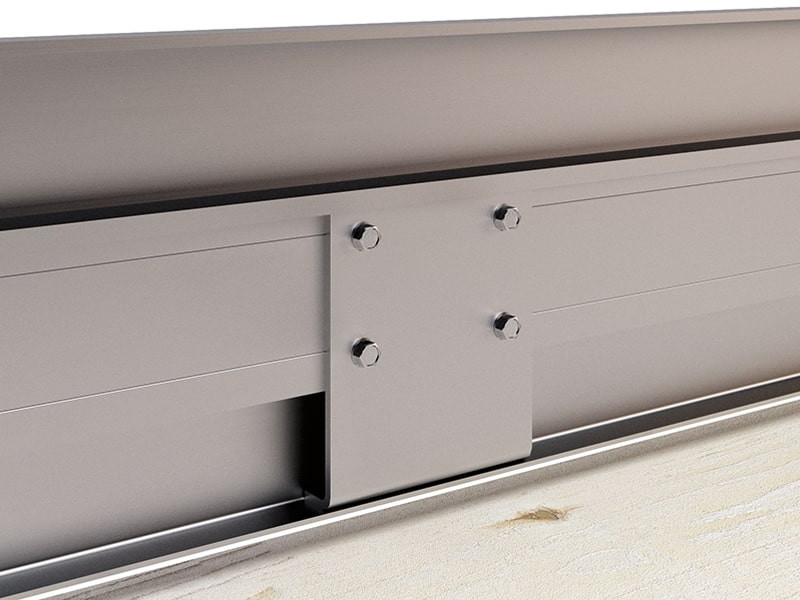

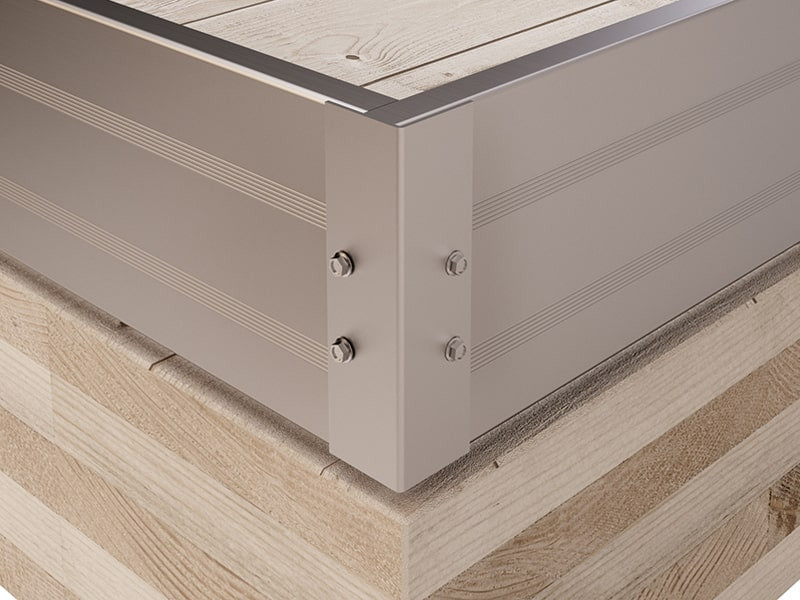

| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBW | support for toe board H = 150 mm for GUARD W | 1 |
BASES ESTÁNDARES - GUARD W
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGBASEW | base for self-supporting GUARD W straight with support leg | 1 |
| RBGBASEWE | locking wedge for GUARD W (spare part) | 1 |
| RBGWEIGHT | plastic counterweight 12,5 kg for GUARD W | 1 |
| RBGBASEWI | base for self-supporting GUARD W inclined with support leg | 1 |
| RBGBASEWIFCR | support leg for 25° right-hand bend inclined strut | 1 |
| RBGBASEWIFCL | support leg for 25° left-hand bend inclined strut | 1 |
ACCESORIOS
| CÓDIGO | descripción | unid. |
|---|---|---|

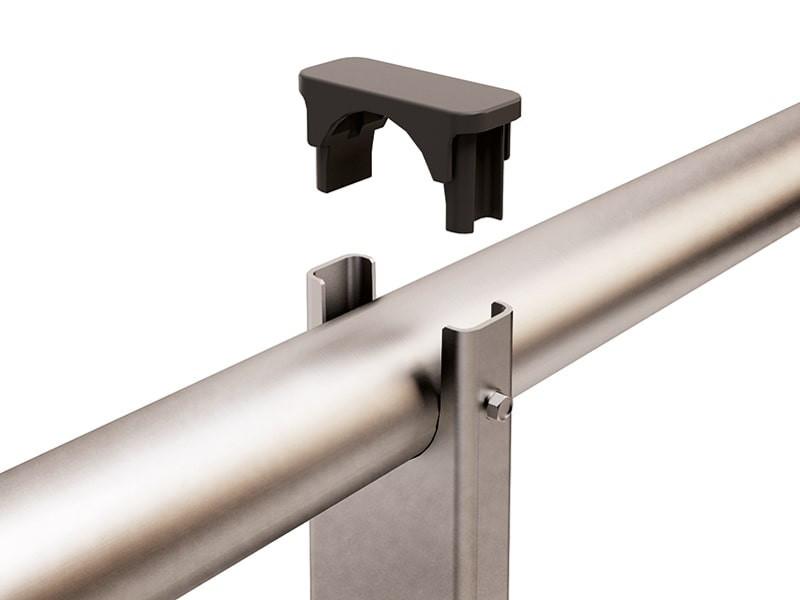

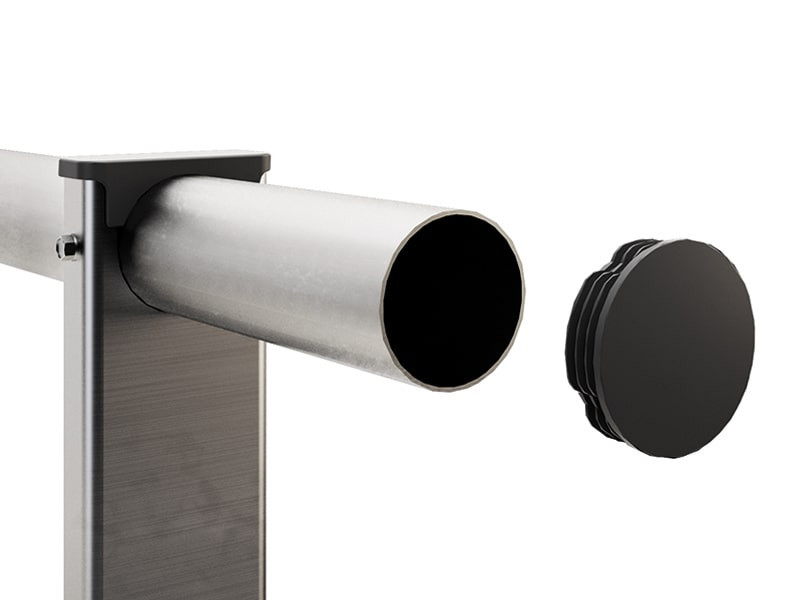

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |

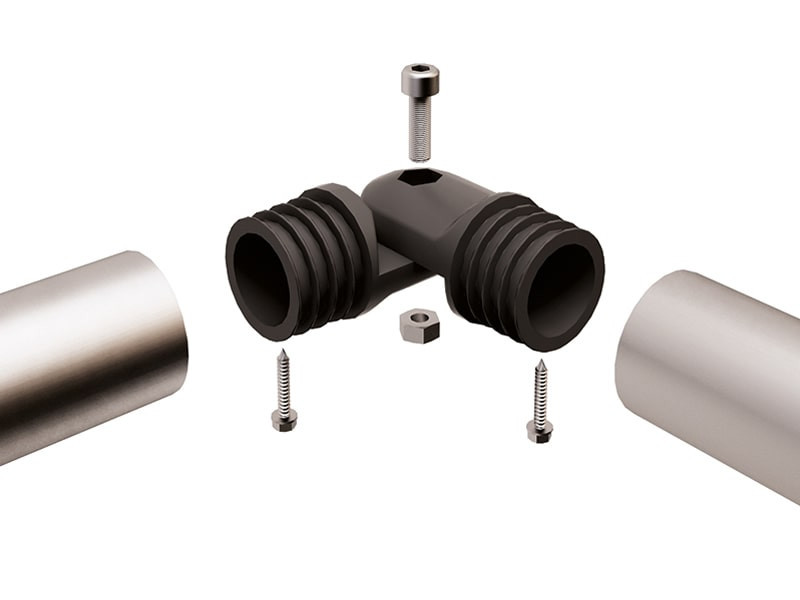

| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
TORNILLOS DE FIJACIÓN - GUARD W
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR4850 | stainless steel self-drilling screw 4,8 x 50 mm | 25 |
| RBGBASEWFKIT | kit for joining RBGBASEWF and RBGBASEWFR / RBGBASEWFL | 1 |
KIT CANCELLETTI DI SICUREZZA
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGGATEWISUP | support for inclined strut gate | 1 |
| RBGGATE600 | safety door 500 mm height with hinges assembled L = 600 mm | 1 |
| RBGGATE1100 | safety door 500 mm height with hinges width L = 1100 mm | 1 |
SISTEMA RECLINABILE
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
