BARANDA FIJACIÓN CON PIEZA EN Z
GUARD Z

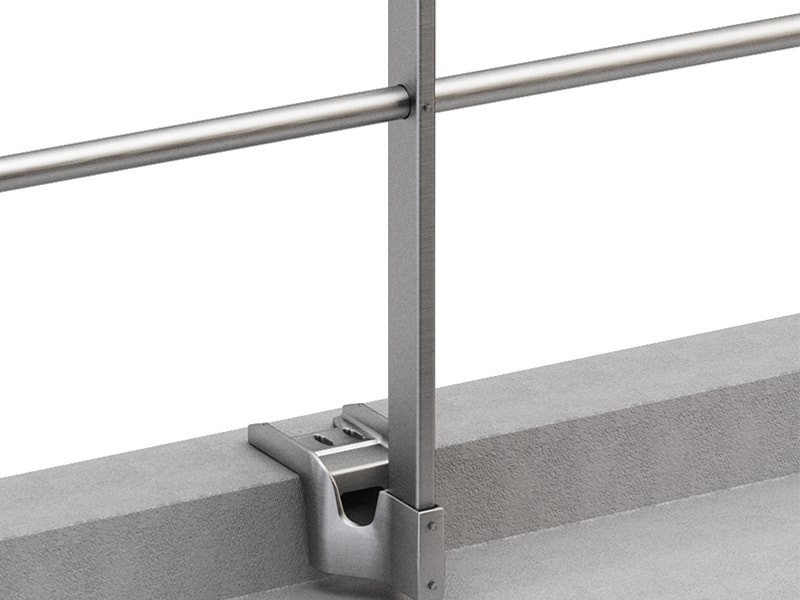

La baranda GUARD Z incluye unos soportes de fijación especiales, en forma Z, para su instalación en el murete perimetral.

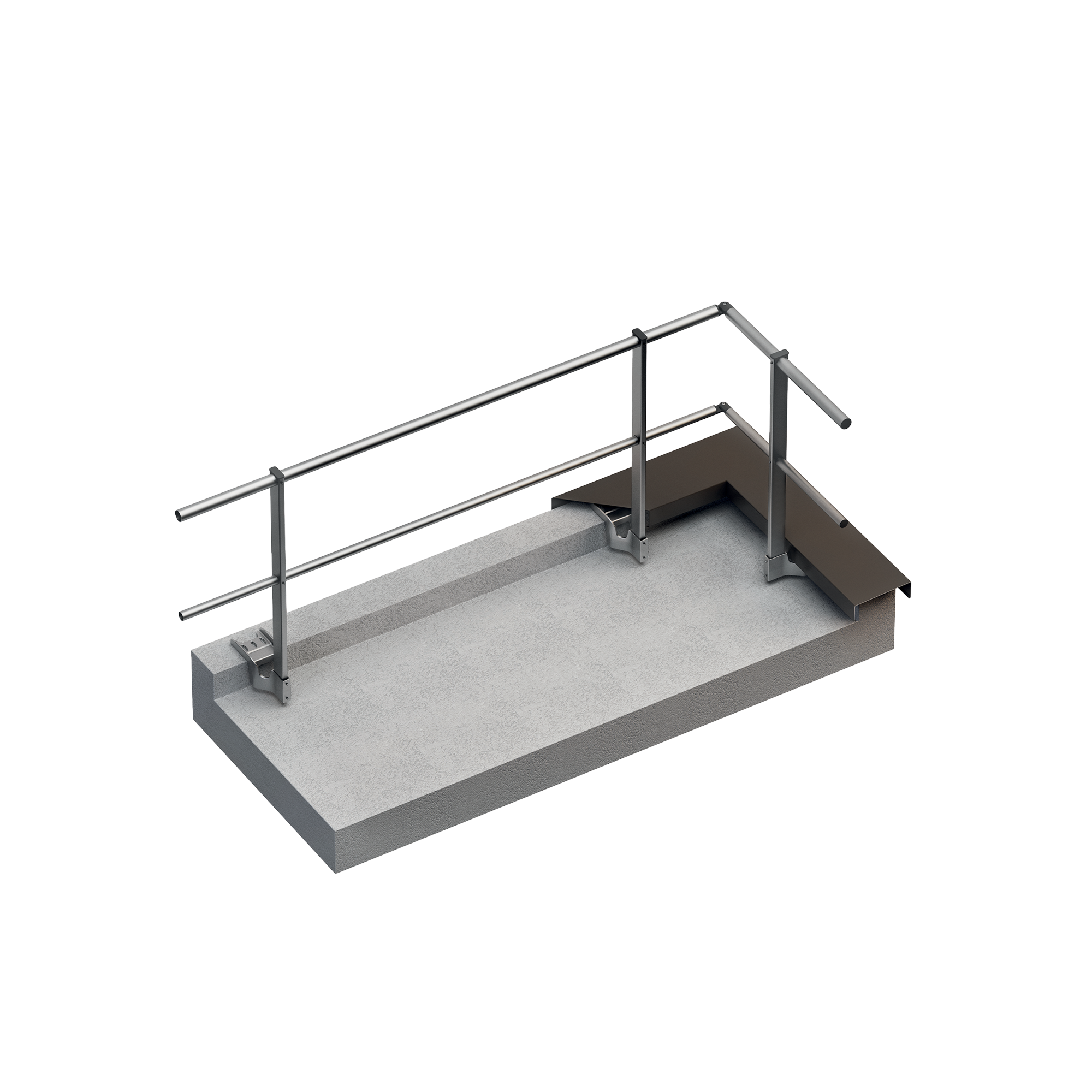

GUARD Z, la baranda para instalar en el murete perimetral.
El montaje es fácil y rápido; los puntos de fijación están colocados de forma que no dañe la capa impermeabilizante. Los componentes se fijan por encastre o con tornillos autoperforantes, incluidos en el suministro. De aleación de aluminio, el sistema es excepcionalmente ligero.
Documentación
Ficha técnica
|
|---|
Instrucciones de colocación
| Manual de instalación |
|---|
PASAMANOS Y BARRAS INTERMEDIAS
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |

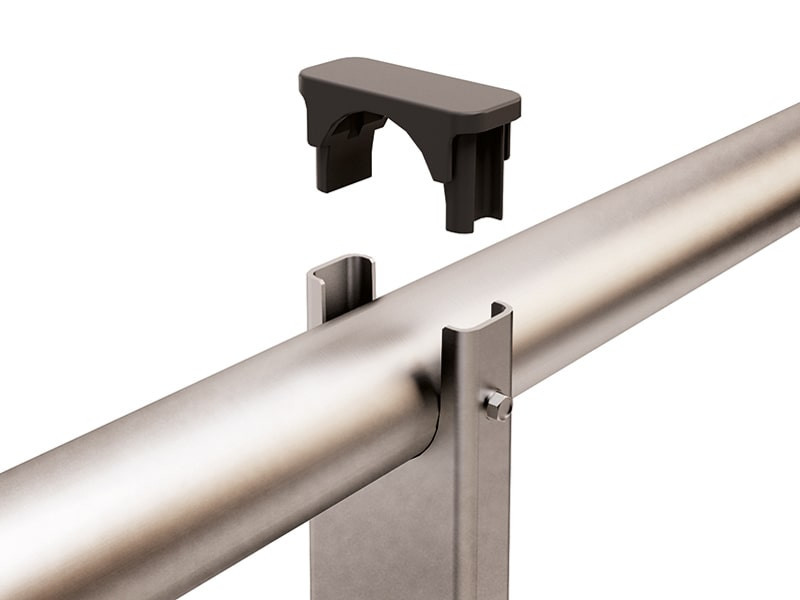

| RBGCAP | - | 1 |
MONTANTES - GUARD Z
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP760WH | staight strut 760 mm high without intermediate rail | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
BASES ESTÁNDARES - GUARD Z
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGBASEZ | standard aluminium base Z for perimeter wall without insulation GUARD Z | 1 |
| RBGBASEZ70 | GUARD Z base with 70 mm thick insulation | 1 |
| RBGBASEZ100 | GUARD Z base with 100 mm thick insulation | 1 |
| RBGBASEZ130 | GUARD Z base with 130 mm thick insulation | 1 |
| RBGBASEZ160 | GUARD Z base with 160 mm thick insulation | 1 |
ACCESORIOS
| CÓDIGO | descripción | unid. |
|---|---|---|

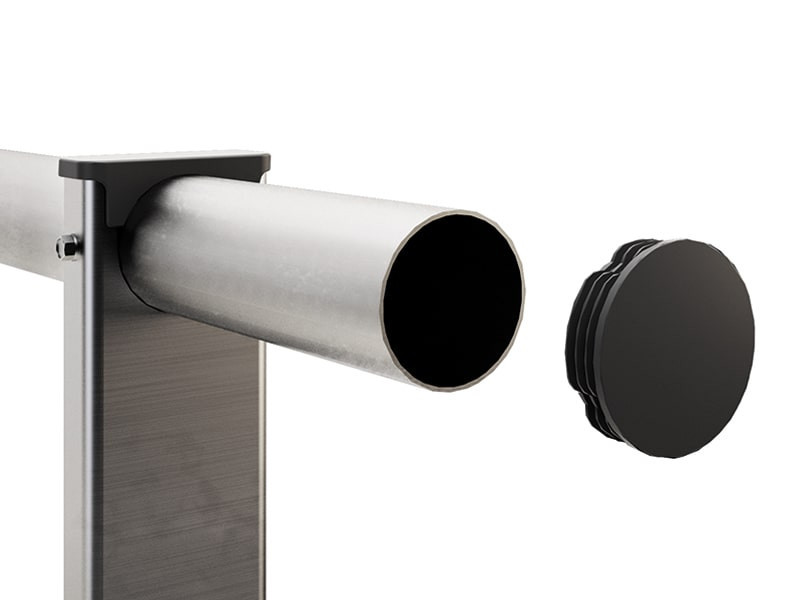

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |

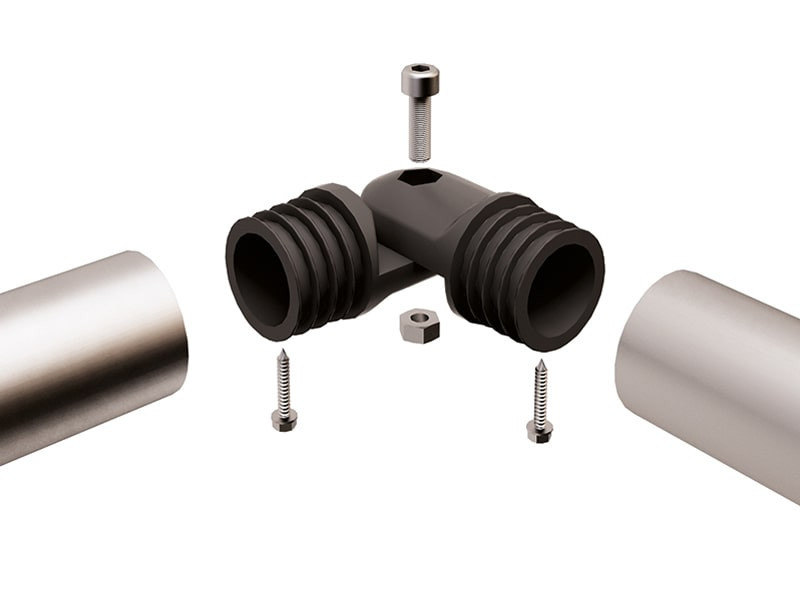

| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
TORNILLOS DE FIJACIÓN - GUARD Z
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR810 | grub screw M8 x 10 (spare part) | 1 |
SISTEMA RECLINABILE
| CÓDIGO | descripción | unid. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
